Project Background
A coordinated mobile + web + TV system that replaced loudspeaker chaos for 784 students, 500+ parents, and 40 staff across three simultaneous physical zones.
Every School Day Ended in Operational Chaos
A parent arrives at the gate. A staff member picks up a loudspeaker and calls a name across 784 students. If an unregistered person shows up — there is no verification system to catch it.
No pickup verification
Anyone could collect a child. No QR, no plate check, no mechanism to flag unregistered individuals.
3–5 minutes per vehicle
Manual name-grade lookup at the gate. With hundreds of cars queuing simultaneously, delays compounded fast.
Loudspeaker dependency
The entire compound relied on one person with a loudspeaker. Missed calls meant repeated broadcasts.
No real-time picture
Parents didn't know their queue position. Admin had no live view until logs were compiled after dismissal ended.
Fragmented Excel logs
Each teacher maintained their own sheet. Safeguarding records were scattered and only useful after the fact.
One exception blocks all
An unregistered vehicle stopped the entire queue. One case held up every family behind it.
Four Completely Different Users, One Coordinated Flow
The system needed to work for four users simultaneously — each in a different physical location with different information needs and different time pressures.
Traffic Manager
At the school gate
Loader / Teacher
Inside the school compound
Display Screen
Compound-mounted TV
Admin
School administration
| Stage | Arrive at School | Queue at Gate | Gate Verification | Student Prep | Collection |
|---|---|---|---|---|---|
| Actions | Parent drives to school after final bell | Joins vehicle queue outside the school gate | Traffic Manager verifies identity and authorises entry | Teacher lines student up based on car confirmation | Student exits gate, parent drives away |
| Touchpoints | No touchpoint | Display screen visible from car | QR scan (mobile app), Manual ID search (fallback) | Teacher mobile app, Display screen updates | One-tap dismiss → all interfaces update |
| Old Pain | — | No queue visibility — uninformed wait | 3–5 min per car; no fraud check; loudspeaker | Student must hear name called across compound | No confirmation — teacher records manually in Excel |
| New Experience | — | Display screen shows numbered queue + status badges | QR scan <30 sec — plate verified, student surfaces instantly | Teacher's app updates in real time — student lined up before car reaches gate | Auto timestamped log — no manual entry, full audit trail |
| Emotion | 😐 Neutral | 😟 Anxious → 😌 Calm | 😤 Frustrated → 😊 Fast | 😕 Uncertain → ✅ Confident | 🎉 Relieved |

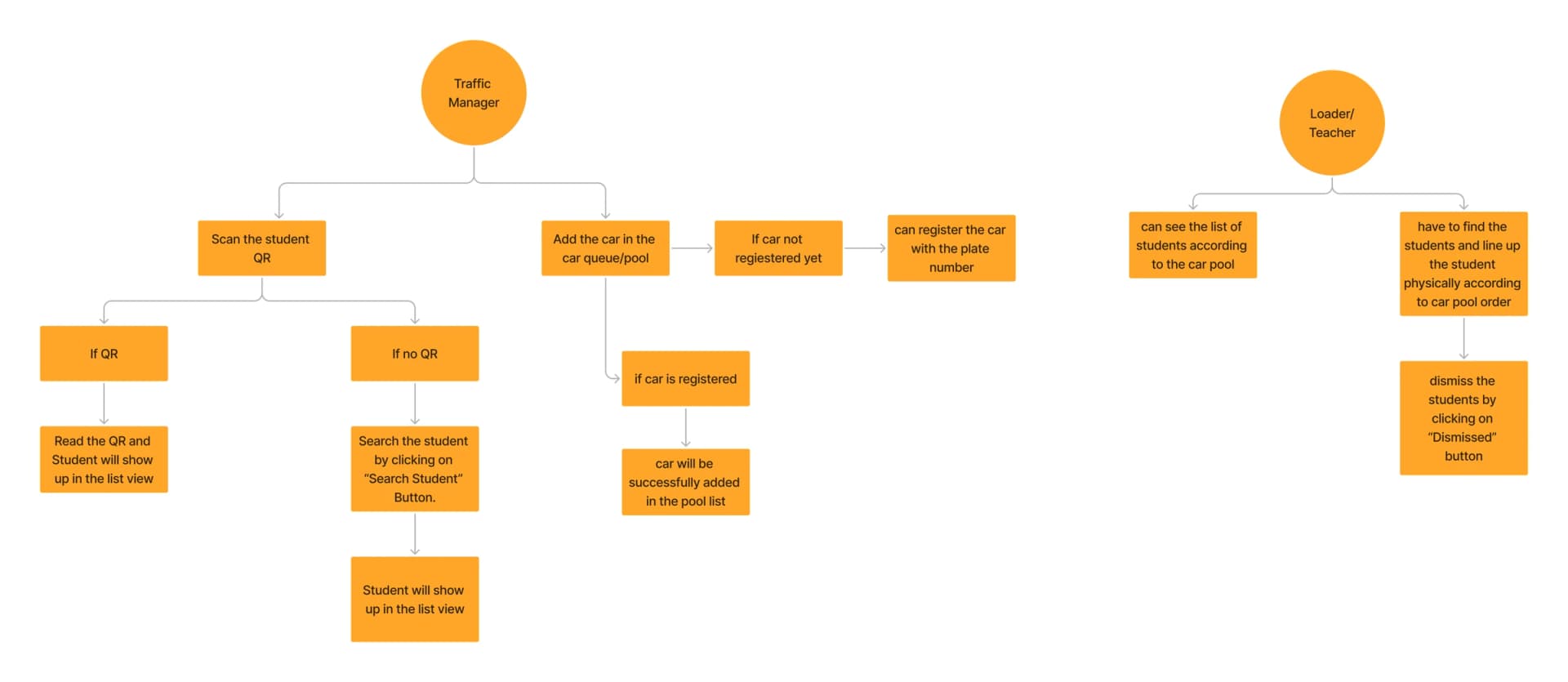

Four Roles, Four Interfaces, One Dismissal Flow
A role overview of what each user sees, what each user does, and which interface coordinates their work.

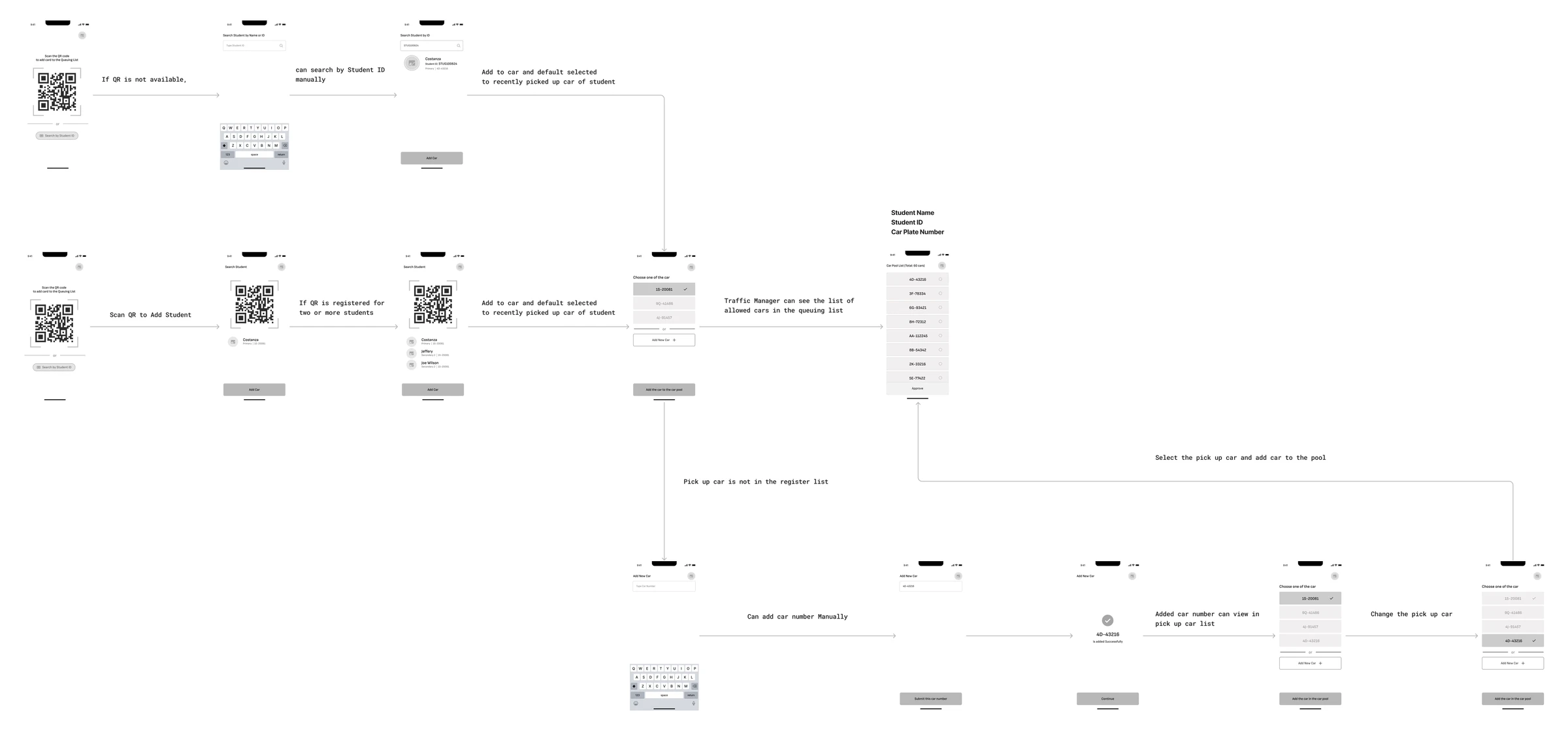

Traffic Manager
Car queue, student name, grade, plate, QR/search result
Verify pickup, add cars to pool, register plates on the spot
Mobile gate app

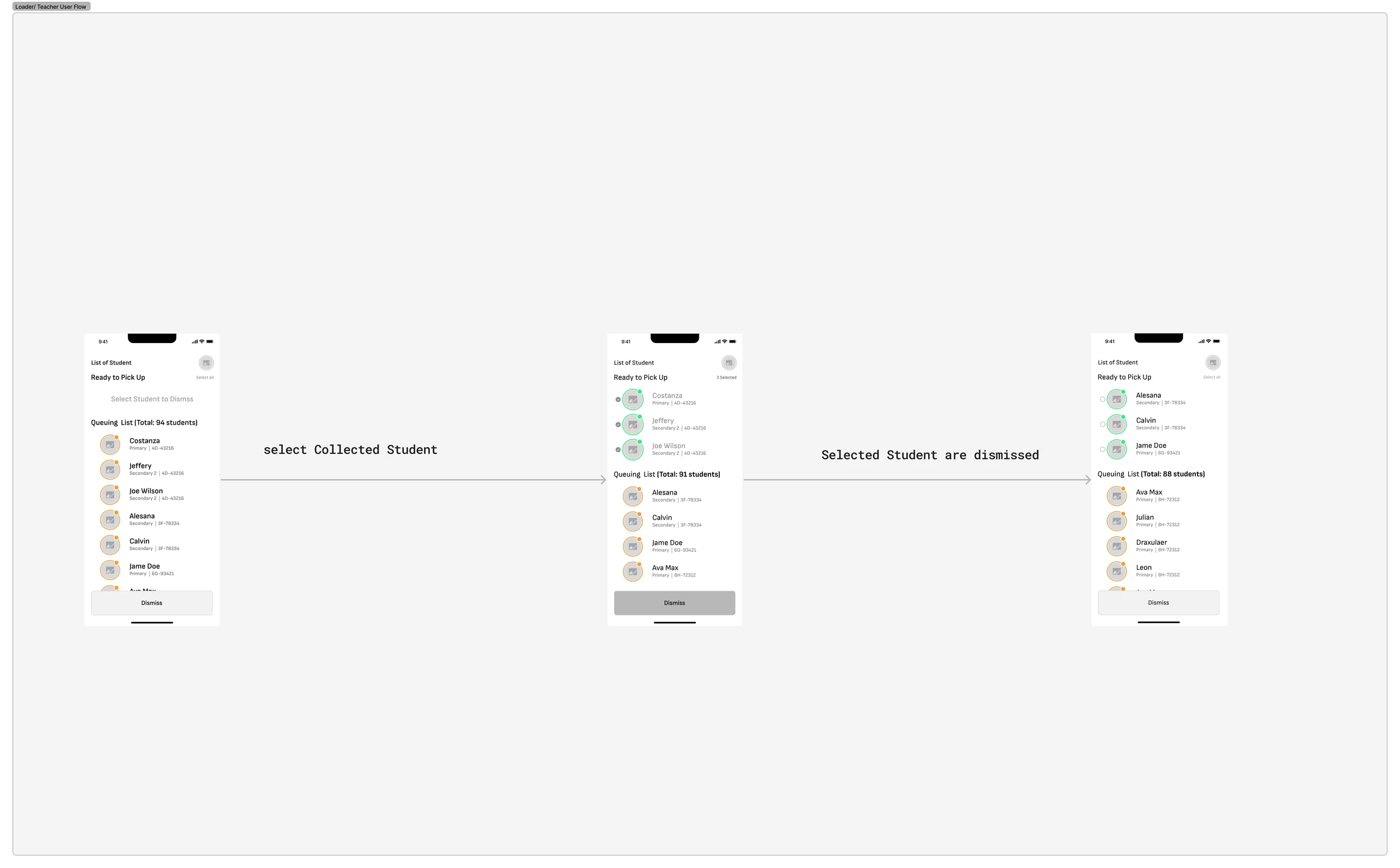

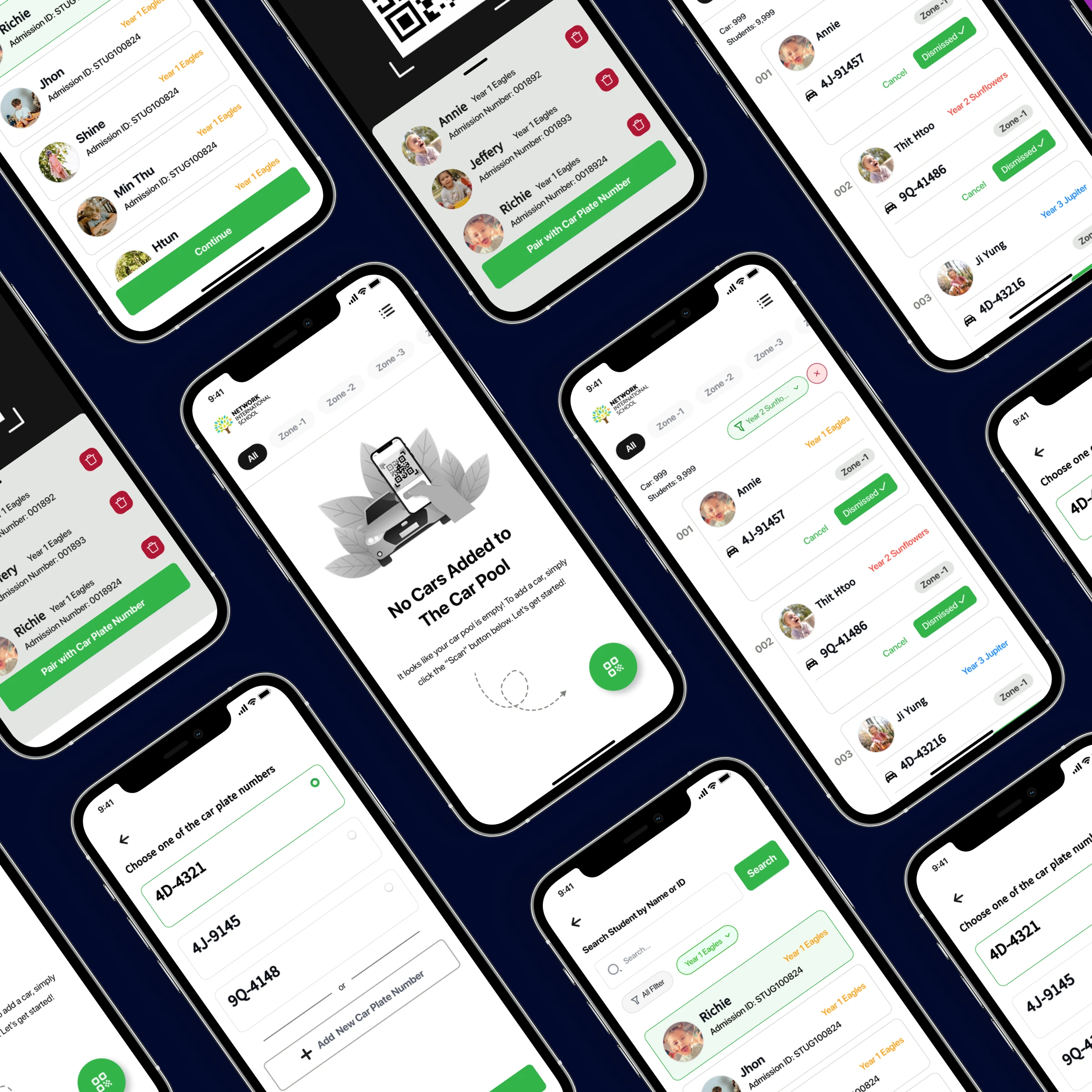

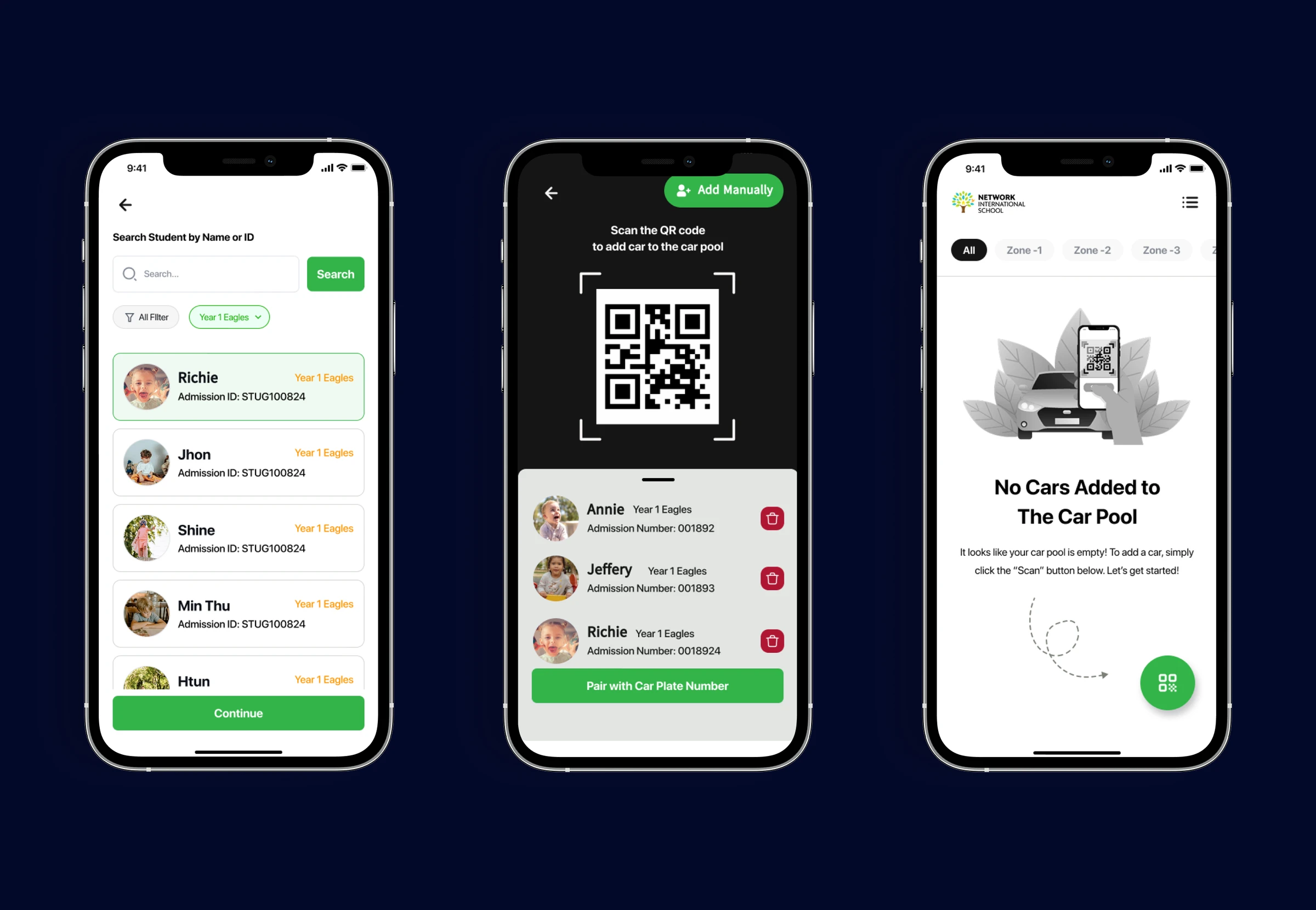

Teacher / Loader
Priority-ordered student queue and dismissal status
Line students up physically and confirm dismissal
Mobile teacher app
Admin
Live dismissal totals, pending queue, teacher activity, logs
Monitor operations and export safeguarding records
Web dashboard

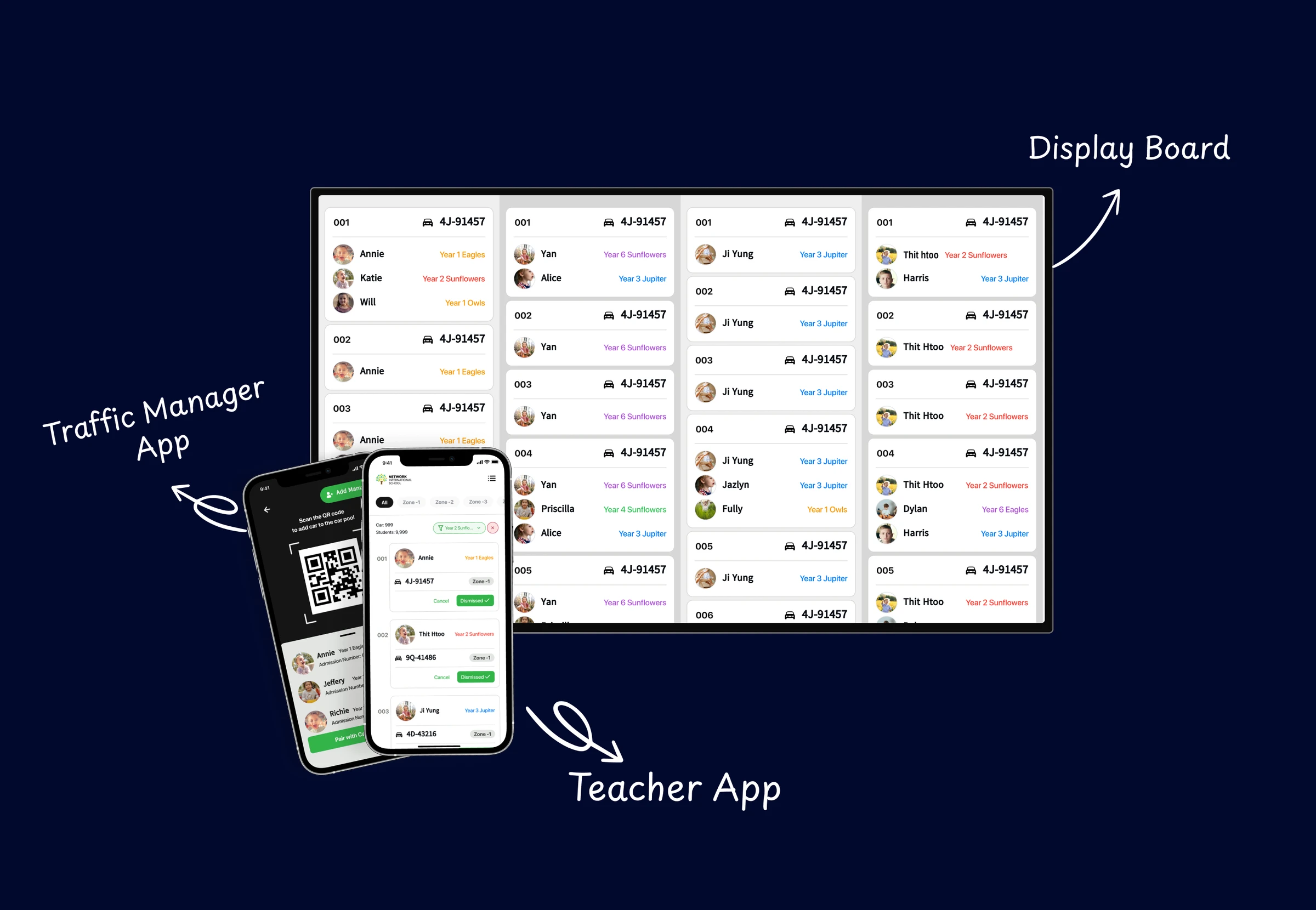

Parent / Display Screen
Numbered student queue and color-coded status
Watch for arrival status before reaching the gate
Compound TV display
After Deployment Across Early Years Through Sixth Form
The system reduced dismissal time, removed loudspeaker dependency, and closed the pickup verification gap.
Reduced from 3–5 minutes per vehicle across hundreds of daily dismissals.
QR verification and pre-registration eliminated the security gap entirely since launch.
Noise pollution in the school compound was significantly reduced.
The display screen replaced uninformed queuing with visible status.
Complete timestamped records are maintained for safeguarding and reporting.
The school requested continued support for the system after deployment.
Lessons Learned
NIS Dismissal Management System
Mobile App + Web Dashboard + TV Display System · Dubai · 2024
Select UI screens shown in this case study. All student names and personal data shown in screens are sample/test data. Real student information is not displayed in any public-facing material in line with Network International School's privacy requirements.
